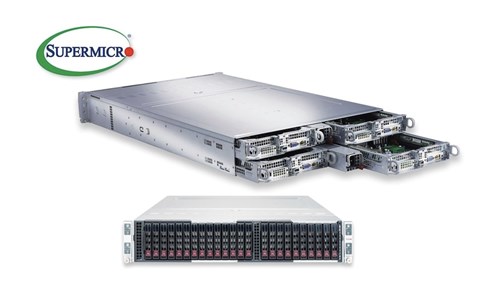

Supermicro BigTwin™

BigTwin™ is the First and Only 2U Multi-Node System supporting the highest performance 205 watt processors, full 24 DIMMs of memory, 24 All-Flash NVMe Drives and an industry leading 30% better thermal capacity - optimized for today and future proofed for the next generation of technology breakthroughs.

  • No-compromise 5th Generation Twin architecture delivers the highest performance and efficiency in a 2U 4-node platform.
  • The first and only multi-node system that supports the widest TDP range of CPUs (up to 205 watts), fully exploits all memory channels with 24 DIMMS per node and 24 All-Flash NVMe drives
  • 30% better thermal capacity in a compact 2U form factor enables configurations with the highest performance processor, memory, storage and I/O leveraging the Titanium level 96% efficient PowerStick power supplies (2200W/2600W).
  • Double the I/O capacity with three PCI-E 3.0 x16 options per node and added flexibility with more than 10 networking options including 2x 1GbE, 10G, 25G,100G, IB and industry leading SIOM modular interconnect
  • Each node can support current and next generation dual Intel Xeon processors with up to 3TB of memory, 24 drives of All-Flash NVMe, Hybrid NVMe/SATA/SAS, SSD and HDD, plus 2 m.2 NVMe per node
Datasheet - Whitepaper



Extending the industry's largest portfolio of server and storage systems, the BigTwin is ideal for customers looking to create a simple to deploy and manage blazing fast high-density compute infrastructure. This new system is targeted for cloud, big data, enterprise, hyper-converged and IoT workloads that demand maximum performance, efficiency and flexibility.

SuperServer 2028BT-HNR+

Key Features
  - Compute Intensive Application
  - HPC, Data Center
  - Enterprise Server
  - Financial Analysis
  - Mission-critical applications

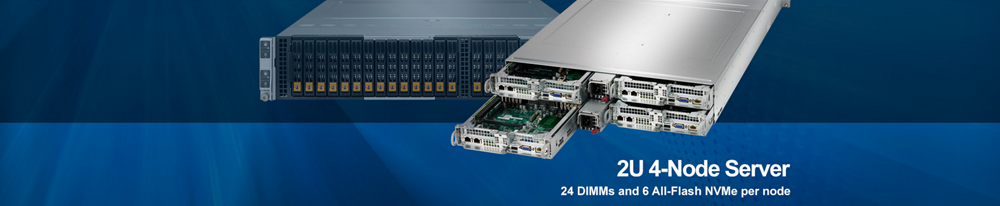

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" NVMe drive bays
6. Video via Aspeed AST2400 BMC
7. 4x 8cm heavy duty PWM fans with air shroud
8. 2200W Redundant Power Supplies Titanium Level
9. 2 M.2 Cards support


Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 NIC or SIOM card per node). Please contact your Sentral sales rep for special requirements.

SuperServer 2028BT-HNC0R+ Key Features
  - Hyperscale and Hyperconverged Solutions
  - Compute Intensive Application
  - HPC, Data Center
  - Enterprise Server

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays
6. SAS3 support via LSI 3008; RAID 0, 1, 10
7. Video via Aspeed AST2400 BMC
8. 4x 8cm heavy duty PWM fans with air shroud
9. 2200W Redundant Power Supplies Titanium Level
10. 2 M.2 Cards support

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 NIC or SIOM card per node). Please contact your Sentral sales rep for special requirements.


SuperServer 2028BT-HTR+

Key Features
  - Compute Intensive Application
  - HPC, Data Center
  - Enterprise Server
  - Financial Analysis
  - Mission-critical applications

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 Hot-swap 2.5" SATA3 drive bays
6. Video via Aspeed AST2400 BMC
7. 4x 8cm heavy duty PWM fans with air shroud
8. 2200W Redundant Power Supplies Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 NIC or SIOM card per node). Please contact your Sentral sales rep for special requirements.


Unsure what to get? Have technical questions? Contact us and we'll help you design a custom system which will meet your needs.
