GIGABYTE G291-Z20 HPC Server - 8 x GPGPU Cards

High Performance Computing Server

• Supports up to 8 x double slot GPU cards
• AMD EPYC™ 7002 and 7001 series processor family
• 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
• 2 x SFP+ 10Gb/s LAN ports (Mellanox ^®  ConnectX-4)
• 1 x Dedicated management port
• 8 x 2.5" hot-swappable HDD/SSD bays
• 2 x M.2 with PCIe Gen3 x4/x2 interface
• 8 x PCIe Gen3 expansion slots for GPUs
• 2 x PCIe x16 half-length low-profile slots for add-on cards
• Aspeed ^®  AST2500 remote management controller
• Dual 2200W 80 PLUS Platinum redundant/hot-swap power supply
• Optimized performance with Mellanox Infiniband EDR and Ethernet 100G prod

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on  7nm  advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to  64 core  per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture
• Supporting  PCIe Gen 4.0  with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
• Embedded security protection  to help defend your CPU, applications, and data

Up to

2X Performance Per Socket & IO Bandwidth  vs AMD EPYC Naples

Up to

4X Floating Point Per Socket  vs AMD EPYC Naples

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

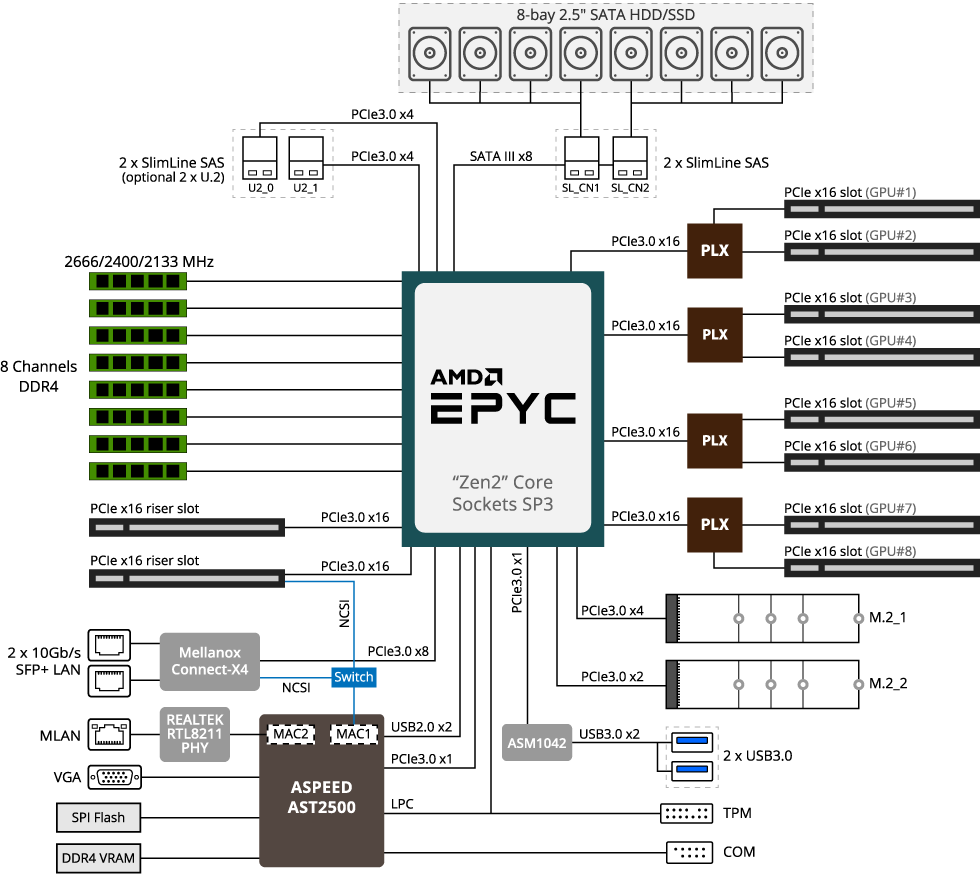

G291-Z20 System Block Diagram

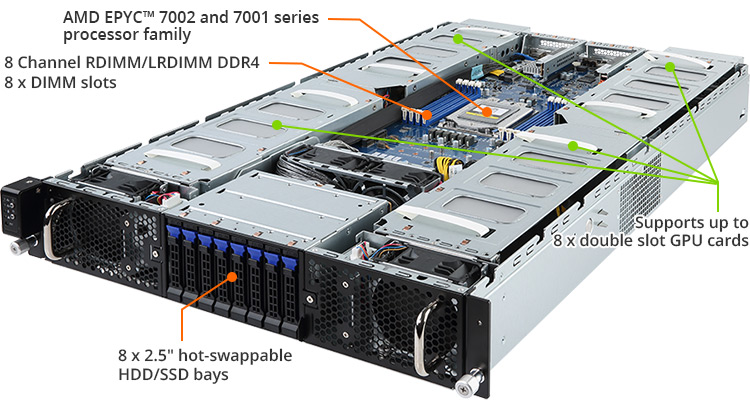

G291-Z20 Product Overview

High Density HPC

Supports 8 x Computing Cards

Able to support up to 8 double slot GPGPU or co-processor cards, the G291 enables world-leading HPC within a 2U chassis. The G291 is ideal for HPC applications such as real time analytics, programs in scientific simulation and modeling, engineering, visualization & rendering, data mining, and much more.



NVIDIA ^®  Tesla ^®  V100 Support

GIGABYTE’s AMD EPYC server systems and motherboards are fully compatible and qualified to use with NVIDIA ^® ’s Tesla ^®  V100 GPU, an advanced data center GPU built to accelerate AI, HPC, and graphics. Powered by NVIDIA’s Volta™ architecture and with 640 Tensor Cores, the Tesla ^®  V100 has broken the 100 teraflops (TFLOPS) barrier of deep learning performance — enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.

High-Speed Networking

GIGABYTE offers 10Gb across dual ports on-board, ensuring that users can get the most out of their system and are well equipped for today’s traffic demands. The server’s network performance is boosted with full-line rate throughput and CPU overhead is reduced, leaving the EPYC to focus on the real compute tasks.

Dense, High Speed Storage Support

Onboard M.2

GIGABYTE AMD EPYC™ platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.

Data Security

TPM 2.0 Module*

GIGABYTE’s EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

(*Available from GIGABYTE as P/N: 9CTM000NR-00)
