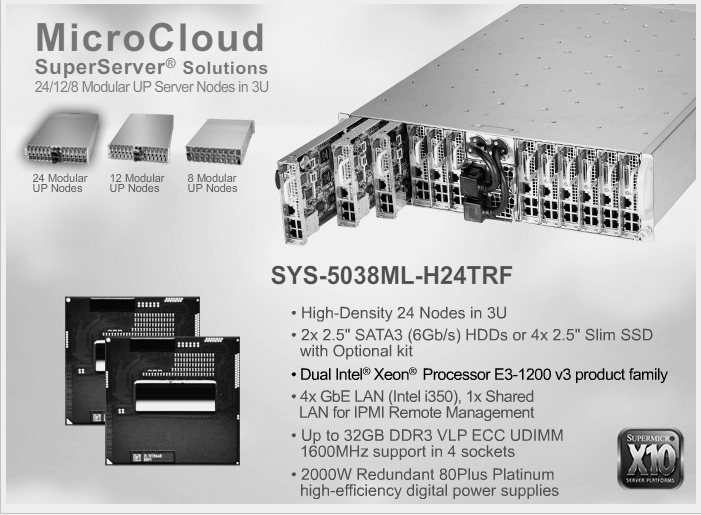

Supermicro MicroCloud (Up to 24 Modular UP Server Nodes in 3U)

The Supermicro MicroCloud modular server system provides the high density, performance, efficiency and cost effectiveness required for today's demanding server deployments. The 24/12/8 modular server nodes are conveniently integrated into a compact 3U chassis that is less than 30 inches deep, saving over 76% of rack space when compared to traditional 1U servers. The cable-less, hot-pluggable server nodes operate independently. Each node can provide up to 128GB of memory, one PCI-E 3.0 x8 expansion slot for low-profile add-on card, and 2x 3.5", or 4x 2.5" HDDs with optional kit.

The MicroCloud system utilizes redundant Platinum Level (94%) high-efficiency power supplies and sophisticated cooling zone controls for a Green energy profile. Each node is powered by an Intel® Xeon® processor from the newest E3-1200 v3 family(up to 84W) or E5-2600 v2 family (up to 130W) and AMD Opteron™ 3000 Series.

Features
  • High density with 24, 12 or 8 UP nodes in 3U
  • Excellent expansion capability with 1 PCI-E 3.0 x8 LP slot per node
  • Up to 2x 3.5" hot-swap or 4x 2.5" fixed SATA3.0 (6Gbps) HDDs per node
  • High efficiency Platinum Level (94%) 1+1 redundant power supplies
  • Up to 6x3.5" or 12x2.5 SAS2 (2208,2108,2008)/SATA3 HDDs/ SSDs per node
  • IPMI 2.0 remote management plus KVM with dedicated LAN per node
  • Intel® Xeon® processor E5-2600 v2, E3-1200 v3 families, or AMD Opteron™ 3000 series
  • Up to 130W high-performance CPU support available
Supermicro MicroCloud Applications:
  • Web Servers, Collocation Services
  • CDN, Video Streaming, and Downloads
  • Enterprise/Corporate Server (WINS, DNS, Print, LDAP, AD)
  • Web 2.0 Applications such as Social Media Marketing, Ecommerce, Customer Support
  • Up to 6x3.5" or 12x2.5 SAS2 (2208,2108,2008)/SATA3 HDDs/ SSDs per node
  • Ideal for Scale-out Applications with Virtualization
  • Server Farms with Single Tenancy Server Requirements

Unsure what to get? Have technical questions? Contact us and we'll help you design a custom system which will meet your needs.


Available Options Include

SuperServer 5038MR-H8TRF

Key Features
  1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3
  2. 2x 3.5" Hot-swap SATA3/SAS drive bays; SAS requires RAID/HBA AOC
  3. 1x PCI-E 3.0 x8 LP slot
  4. Up to 256GB LRDIMM, 128GB RDIMM, up to 2133MHz DDR4 ECC; 4x DIMMs
  5. 2x GbE LAN ports via Intel® i350
  6. 1x Dedicated LAN for IPMI Remote Management
  7. 4x 8cm Heavy duty fans with optimal cooling zone
  8. 1620W High-efficiency Redundant Platinum Level power supplies

SuperServer 5038MA-H24TRF (Complete System Only)
CDN, Cloud Computing, Hosting & Application Delivery, Web Cache, Web Server

Key Features
  1. Dual Intel® Atom processor C2750, SoC, FCBGA 1283, 20W 8-Core
  2. 2x 2.5" SATA3 (6Gb/s) HDDs per node
  3. Up to 64GB DDR3 VLP ECC UDIMM 1600MHz support in 4 sockets
  4. 2x GbE LAN (Intel i354), 1x Shared LAN for IPMI Remote Management
  5. Shard 1x VGA, 1x COM ports, 2x USB 2.0 (with KVM dongle)
  6. 4x 9cm Heavy duty fans with optimal cooling zone
  7. 1600W Redundant Platinum Level Digital power supplies

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Sentral sales rep for special requirements.

Sentral provides built-to-order rackmount servers and storage solutions. Please contact us for a fast custom quotation. 0845 644 8016 (UK Only) - International: +44(0)2380 213119 - Email: sales@sentralsystems.com


SuperServer 5038ML-H8TRF

Key Features (per node)
  1. Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th/5th gen. Core™ i3, Pentium, Celeron processors; Socket H3 (LGA 1150)
  2. 2x 3.5" SAS/SATA HDDs
  3. Up to 32GB DDR3 ECC UDIMM 1600/1333MHz support in 4 sockets
  4. 2x GbE LAN (Intel i350), 1x Dedicated LAN for IPMI Remote Management
  5. 1x PCI-E 3.0 x8 and 1x Micro-LP
  6. 1x VGA, 1x COM ports, 2x USB 2.0 (with KVM dongle)
  7. 4x 8cm Heavy duty fans with optimal cooling zone
  8. 1620W Redundant Platinum Level power supplies

A+ Server 3012MA-H12TRF

Key Features
  1. Single AMD Opteron™ 3000 series (3300 ready) processor (Socket AM3+) 8/4-Core ready; HT3.0 Link
  2. Up to 32GB VLP DDR3 1600MHz Unb. ECC/non-ECC; 4x DIMM sockets
  3. 2x GbE LAN (Intel i350), 1x Dedicated LAN for IPMI Remote Management
  4. Twelve sets of 2x 3.5" or 4x 2.5" (HDDs with Optional kit)(optional) SATA drive bays (internal)
  5. 1620W (1+1) Redundant Platinum Level power supplies


All Sentral server and storage solutions undergo a thorough testing procedure by our in-house System Engineers, prior to shipment. Sentral's customers demand mission-critical reliability. We deliver that.


SuperServer 5037MR-H8TRF

Key Features (per node)
  1. Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  2. 2x 3.5" Hot-swap SATA3 (6 Gbps)
  3. 1x (x8) PCI-E 3.0 low-profile slot
  4. Up to 128GB DDR ECC RDIMM or 32GB DDR ECC UDIMM; 4x DIMMs
  5. 2x GbE LAN ports via Intel® i350
  6. 1x Dedicated LAN for IPMI Remote Management
  7. 4x 8cm Heavy duty fans with optimal cooling zone
  8. 1620W Redundant 80Plus Platinum Level power supplies


Sentral provides built-to-order rackmount servers storage and professional workstation solutions. Please contact us for a fast custom quotation. 0845 644 8016 (UK Only) - International: +44(0)2380 213119 - Email: sales@sentralsystems.com
